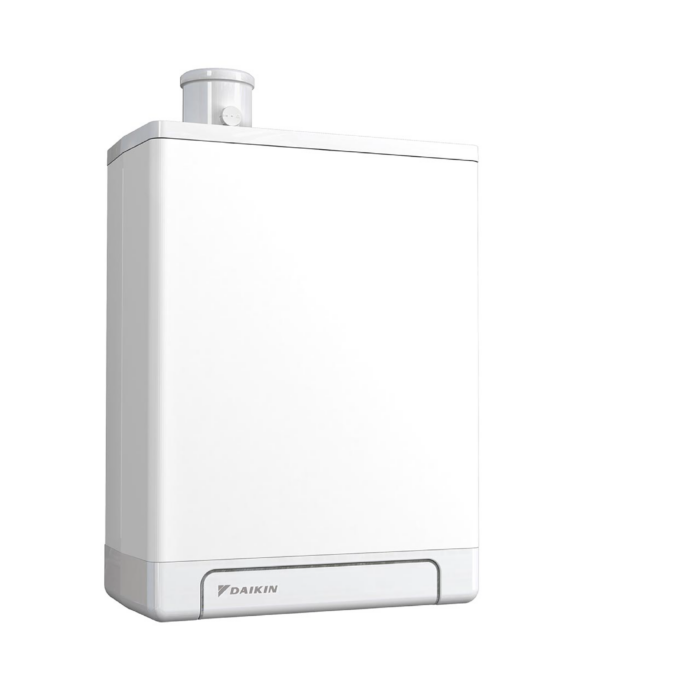

Daikin EKOMB28AAV1H

SKU: DAIKIN D2CND024A1A-1-1
Daikin

Availability: In stock Compare
  • The DAIKIN condensing gas boiler comes to meet the heating and hot water needs of a home.
  • The condensation of the exhaust gases ensures high efficiency since part of the heat that would be released into the atmosphere remains in the system.
  • The water that returns from the network is led to an alternator and is heated by the exhaust gases, in this way the burner operates at a lower power and for a shorter period of time.
  • The peculiarity of the DAIKIN gas boiler is that it uses the same heat exchanger for domestic hot water, resulting in: The exploitation of the condensation phenomenon and for DHW heating, with a significant gain in operating efficiency.
  • It uses one less heat exchanger, resulting in less heat loss
  • The circulator is of the INVERTER type
  • Avoiding the plate exchanger which entails a gain of spare parts and maintenance.

1.428,90

  • The DAIKIN condensing gas boiler comes to meet the heating and hot water needs of a home.
  • The condensation of the exhaust gases ensures high efficiency since part of the heat that would be released into the atmosphere remains in the system.
  • The water that returns from the network is led to an alternator and is heated by the exhaust gases, in this way the burner operates at a lower power and for a shorter period of time.
  • The peculiarity of the DAIKIN gas boiler is that it uses the same heat exchanger for domestic hot water, resulting in: The exploitation of the condensation phenomenon and for DHW heating, with a significant gain in operating efficiency.
  • It uses one less heat exchanger, resulting in less heat loss
  • The circulator is of the INVERTER type
  • Avoiding the plate exchanger which entails a gain of spare parts and maintenance.



Features

  • G20 gas consumption (m / h) 0.567-2.65
  • NOx class 5
  • Yield at 80/60 ° C Min.- Nom. (kW) 5.4-17.8
  • Yield at 50/30 ° C Min.- Nom. (kW) 5.9-18.5
  • Yield (%) 107%
  • Maximum permissible water pressure (bar) 3 bar
  • Maximum water temperature (° C) 90
  • Dimensions (H x W x D) 590X450X240
  • Gas connection diameter (mm) 15
  • Chimney / fresh air dimensions (mm) 60/100
  • Hot water supply at 40 ° C (l / min) 10
  • Hot water supply at 60 ° C (l / min) 6
SKU: DAIKIN D2CND024A1A-1-1 Category:
Manufacturer

Daikin

Nominal Heat Output

16079 kcal/h

Supply

Gas

Τοποθέτηση

Wall mounted

Additional features

Condensation

With Burner

Yes

Κατανάλωση φυσικού αερίου G25 (m³/ώρα) 0.85-2.85
Κλάση NOx 5

Απόδοση στους 80/60°C Ελάχ.- Ονομ. (kW) 6.9-22.8
Απόδοση στους 50/30°C Ελάχ.- Ονομ. (kW) 7.6-23.4
Ελάχιστη απόδοση στους 40/30 (kW) 7.6
Απόδοση (%) 107%
Μέγιστη επιτρεπόμενη πίεση νερού (bar) 3 bar
Μέγιστη θερμοκρασία νερού (°C) 90
Διαστάσεις (Υ x Π x Β) 590x450x240

Διαστάσεις καμινάδας/νωπού αέρα (mm) 60/100
Παροχή ζεστού νερού στους 40°C (l/min) 12.5
